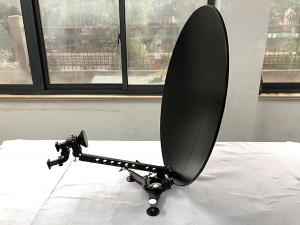

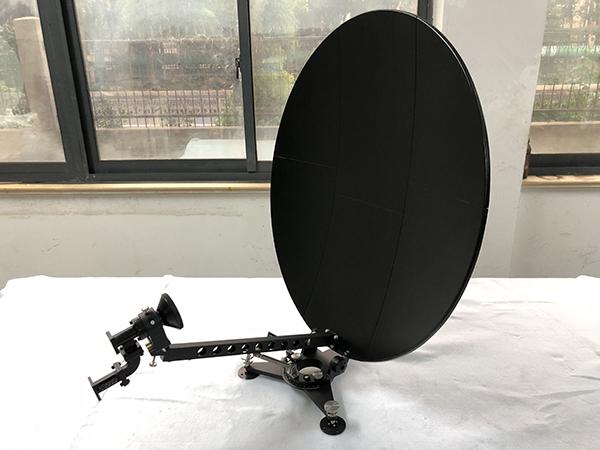

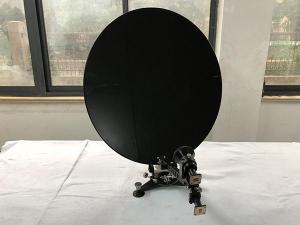

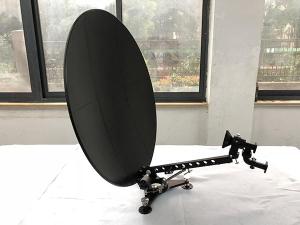

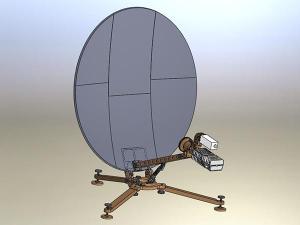

0.75m Ka-band Carbon Fiber Flyaway Antenna

0.75m Ka-band Carbon Fiber Flyaway Antenna
0.75m Ka-band Carbon Fiber Flyaway Antenna 0.75m Ka-band Carbon Fiber Flyaway Antenna 0.75m Ka-band Carbon Fiber Flyaway Antenna 0.75m Ka-band Carbon Fiber Flyaway Antenna
Inquiry Form

Features:
▪ 6 carbon fiber panels
▪ High gain and excellent sidelobe performance
▪ 5 minutes setup
▪ Easy & fast elevation adjustment

Specifications of 0.75m Ka-band Carbon Fiber Flyaway Antenna
◆ R.F SPECIFICATIONS Ka-band
RECEIVE TRANSMIT
1. Frequency (GHz) 17.8-20.2 28-30
2. Typical Gain(dBi) 41 at 19GHz 44.9 at 29GHz
3. VSWR 1.3:1 1.3:1
4. Beamwidth (-3dB) 1.28° 0.84°
5. Antenna Noise Temperature (K)
10°Elevation 95K
20°Elevation 85K
40°Elevation 76K
6. Typical G/T at 20°EL 15.2dB/K (20.4GHz, 170K LNA)
7. Power Handling Capability / ≥1KW
8. Feed Interface WR42 WR28
9. Rx to Tx Isolation ≥85dB (Including Rejection Filter)
10. Axial Ratio (dB) ≤1.5dB (On Axis) ≤1.5dB (On Axis)
11. Sidelobes CCIR.580-6
◆ MECHANICAL SPECIFICATION ◆ ENVIRONMENTAL SPECIFICATION
1. Antenna Type Offset 1. Wind Loading,Operational ≦34mph(54km/h)
2. Drive Type Manual 2. Ambient Temperature -40°C to 60°C
3. AZ Travel 0° to 360° 3. Rain 100mm/h
4. EL Travel 10° to 80° 4. Relative Humidity 0 to 100%
5. POL Travel ±90° 5. Solar Radiation 360 BTU/h/ft2 (1000Kcal/h/m2)
6. Reflector Material Carbon Fiber 6. Ice 25mm on all surface or 13mm on all surface with
130km/h wind gusts
7. Reflector Segments 6
9. Surface Accuracy 0.3mm (R.M.S)
Products can be customized. Other frequency range needed can be customized. Please refer to our company for details.
Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice.
