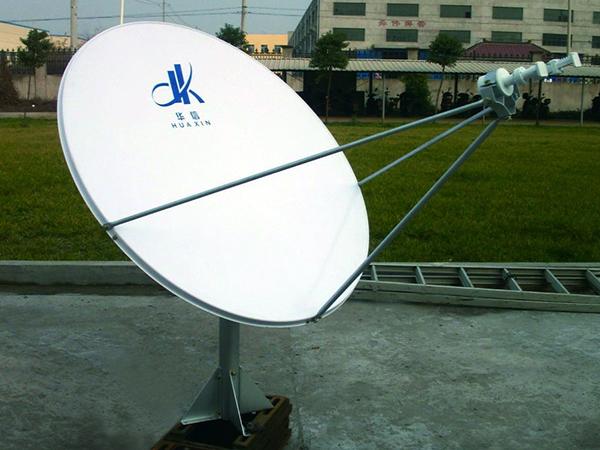

1.2m Special Ku-band VSAT Antenna
Features:
▪ High gain and excellent sidelobe performance
▪ Factory feed system and king post pedestal
assembled to reduce installation time
▪ No field alignment requirement
▪ Well in anti-corrosion
▪ Excellent in stability
| ◆ R.F SPECIFICATIONS | Special Ku-band | |||
| RECEIVE | TRANSMIT | |||
| 1. Frequency (GHz) | 11.2-11.45 | 13-13.25 | ||
| 2. Typical Gain(dBi) | 41.17 at 11.3GHz | 42.04 at 13GHz | ||
| 3. VSWR | 1.25:1 | 1.25:1 | ||
| 4. Beamwidth (-3dB) | 1.376° | 1.247° | ||
| 5. Antenna Noise Temperature(K) | 2Port Feed | |||
| 10°Elevation | 69K | |||
| 20°Elevation | 61K | |||
| 40°Elevation | 56K | |||
| 6. Typical G/T at 20°EL | 20.95dB/K (11.3GHz, 70K LNA) | |||
| 7. Power Handling Capability | 1KW/Port | |||
| 8. Feed Interface | WR-75 | WR-75 | ||
| 9. Feed Interface Loss | 0.5dB | 0.3dB | ||
| 10. Rx to Tx Isolation | ≥85dB | |||
| 11. Cross Pol Isolation | ||||
| On Axis | ≥35dB | |||
| 12. Sidelobes | CCIR.580-6 | |||
| ◆ MECHANICAL SPECIFICATION | ◆ ENVIRONMENTAL SPECIFICATION | |||
| 1. Antenna Type | Offset | 1. Wind Loading,Operational (Maintain Precision) | 45mph(72km/h) | |
| 2. Drive Type | Manual | 2. Wind Loading,Operational (Decrease Precision) | 60mph(97km/h) | |
| 3. AZ Travel | 0 to 360° | 3. Wind Loading,Survival (Fixed Heavenward) | 125mph(200km/h) | |
| 4. EL Travel | 10° to 90° | 4. Ambient Temperature | -40°C to 60°C | |
| 5. POL Travel | ±90° | 5. Rain | 100mm/h | |
| 6. Reflector Material | Precision formed aluminum | 6. Relative Humidity | 0 to 100% | |
| 7. Reflector Segments | 1 | 7. Solar Radiation | 360 BTU/h/ft2 (1000Kcal/h/m2) | |
| 8. Mount Type | Pole mount | 8. Ice | 25mm on all surface or 13mm on all surface with 130km/h wind gusts |
|
| 9. Surface Accuracy | 0.5mm(R.M.S) | 9. Shock and vibration | As encountered during shipment by commercial air, sea or truck |
|
| 10.Seismic (Survival) | 0.3G's horizontal, 0.15G's vertical | |||
| Products can be customized. Other frequency range needed can be customized. Please refer to our company for details. Our company reserves the right of final interpretation. Any design and specifications are subject to change without notice. |
||||
